Agrivoltopolis

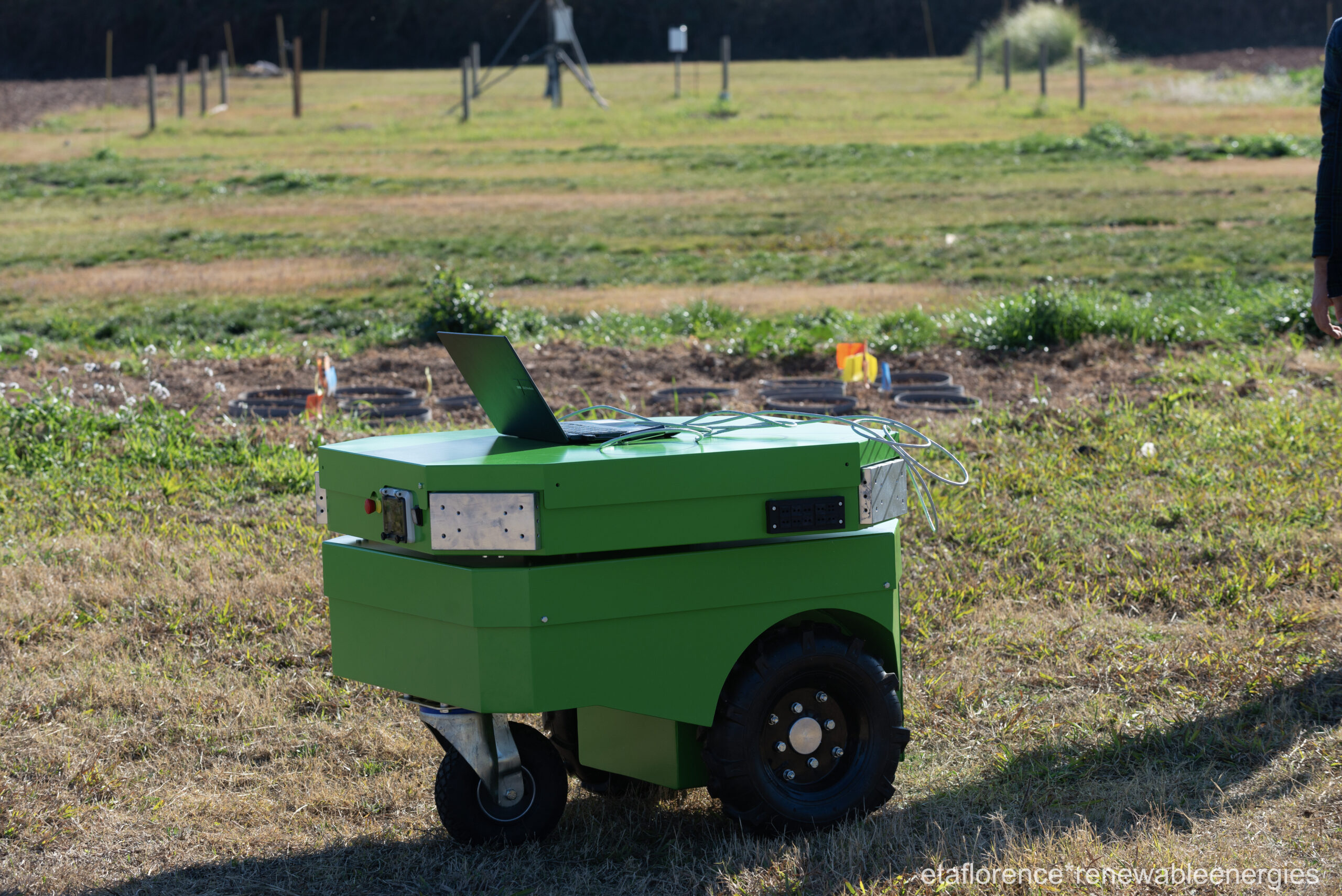

Semi-automatic PV devices for the vegetable crops (tomatoes, melon, lettuce, and fava beans) that can integrate bird and insect protection, resistant to chemical products. The devices are optimised for the various cultures and made of different materials (wood and steel). For the monitoring of weather data will be designed and develop an automated robot.
Technical info

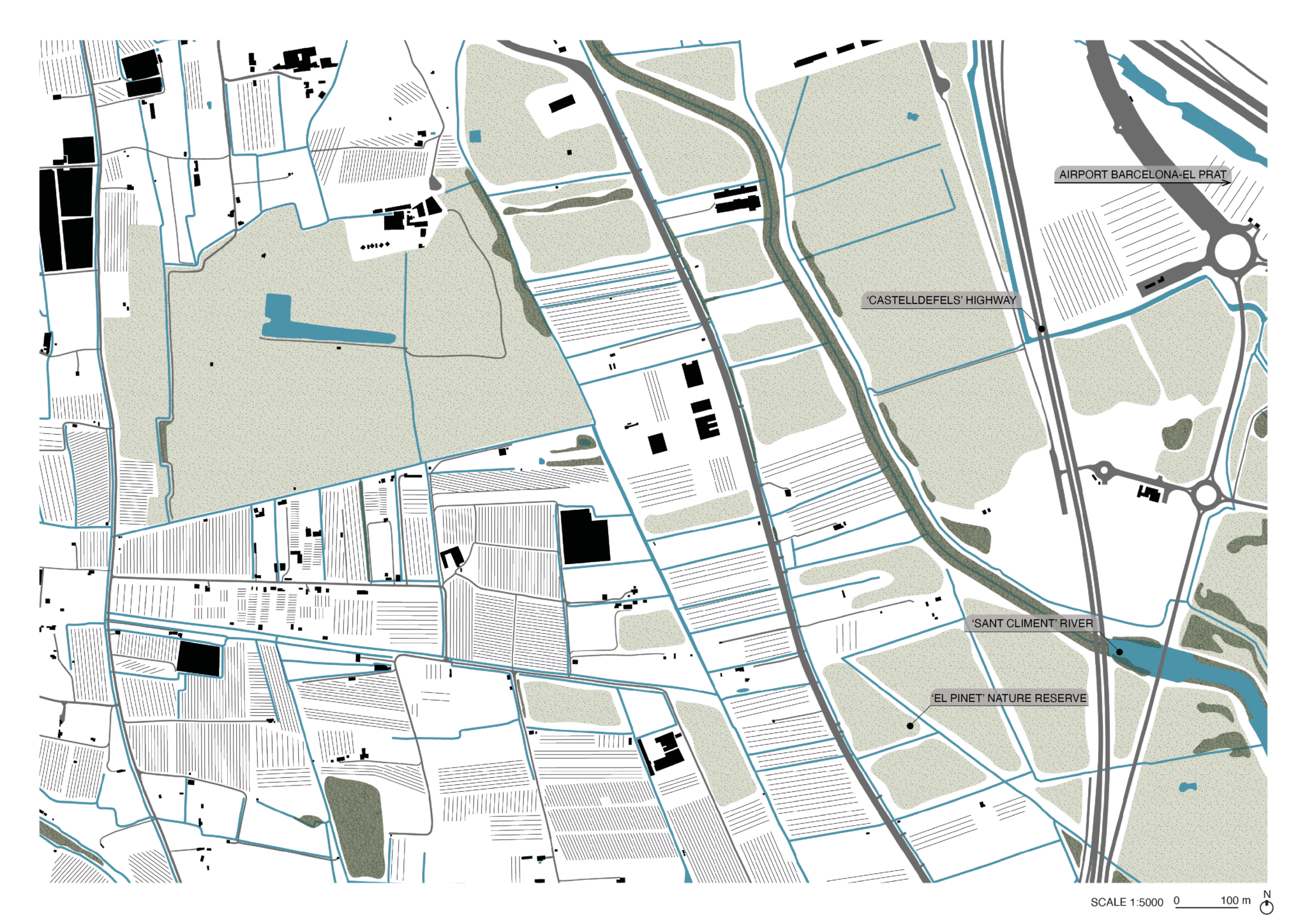

Localization
41°17’16.21″N; 2° 2’39.95″E;
Region of Catalonia, Province of Barcelona, Municipality of Viladecans, Spain
Cultivation typology

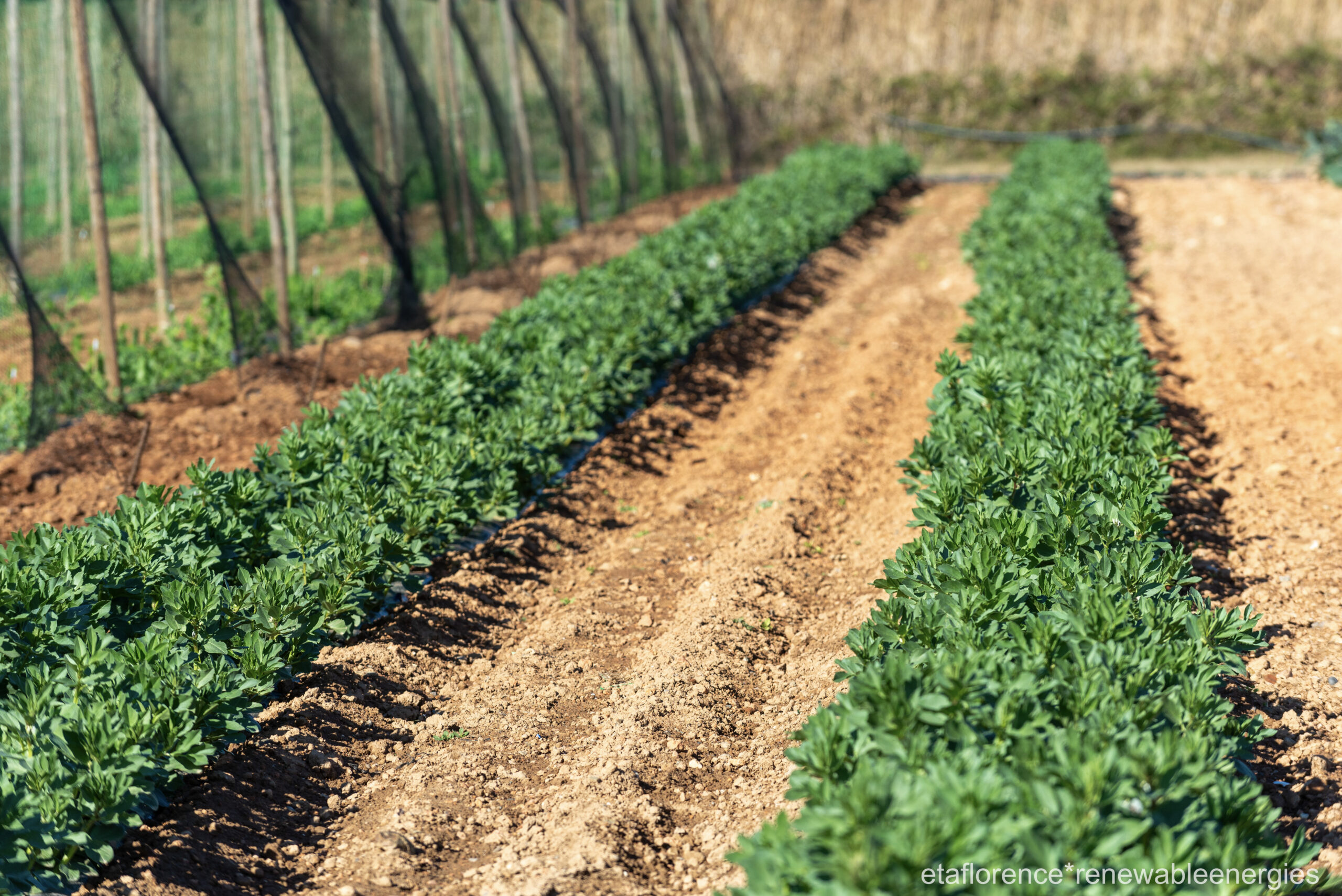

Lettuce, Fava beans, Onions and Tomato
Sustainable agriculture
Water will be conveyed to avoid issues to the plants below. The water will be collected and redirected to the already available rainwater reservoir to later be used for drip irrigation
Photovoltaic system
PV modules size is 1752 x 1144 x 40 mm, Height at rotational axis is 2.8 m, Space Interpoles (Span) is 6 m, Space between rows (Pitch) is 5.9 and 4.1 m
Installed capacity
47.2 kW
Monitoring system
Air and soil humidity and temperature, PARs (Photosynthetically Active Radiation), wind speed and direction, rain, irrigation water
Electricity use
The electricity could be used in the irrigation system as well as to facilitate the charge of the electrical tools and vehicles
Pictures
